ViewBicks 3.3 - Handheld Wireless Synchronous Video Displays ViewBicks 3.3 - Handheld Wireless Synchronous Video Displays


Techniques Merged - ViewBicks 3.3

Handheld Wireless Synchronous Video Displays



The ViewBicks 3.3 system consists of the synchronous playback control of multiple battery powered handheld video displays by virtue of wireless control



With its wide viewing angle, long lasting battery, rugged enclosure and wide choice of video file formats, the ViewBicks 3.3 system is most suitable for on stage shows and performances both in pitch darkness as well as in bright light



Being a totally indigenous design and development, the ViewBicks 3.3 system facilitates a hassle free upgradability, serviceability and repairability



Manufactured using highly reliable industrial grade components, the complete ViewBicks 3.3 system has been engineered to provide a long term operability as well as reliability



Clientele for the ViewBicks 3.3 system would include event & show organizers, choreographers, dancers, entertainers, movie makers, etc.

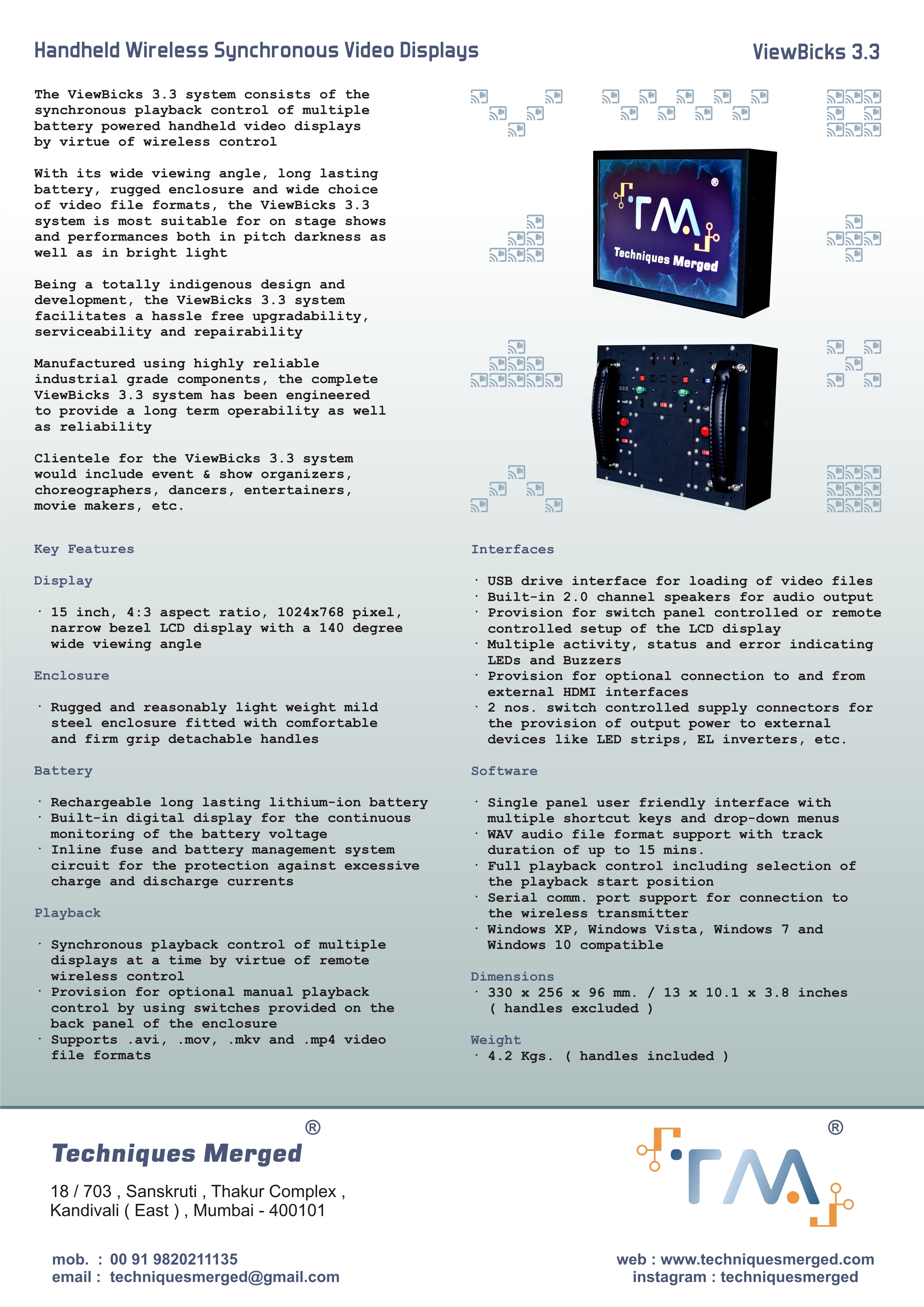

ViewBicks 3.3 - Handheld Wireless Synchronous Video Displays - Brochure

ViewBicks 3.3 - Handheld Wireless Synchronous Video Displays - Brochure





Key Features



Display

15 inch, 4:3 aspect ratio, 1024x768 pixel, narrow bezel LCD display with a 140 degree wide viewing angle



Enclosure

Rugged and reasonably light weight mild steel enclosure fitted with comfortable and firm grip detachable handles



Battery

Rechargeable long lasting lithium-ion battery

Built-in digital display for the continuous monitoring of the battery voltage

Inline fuse and battery management system circuit for the protection against excessive charge and discharge currents



Playback

Synchronous playback control of multiple displays at a time by virtue of remote wireless control

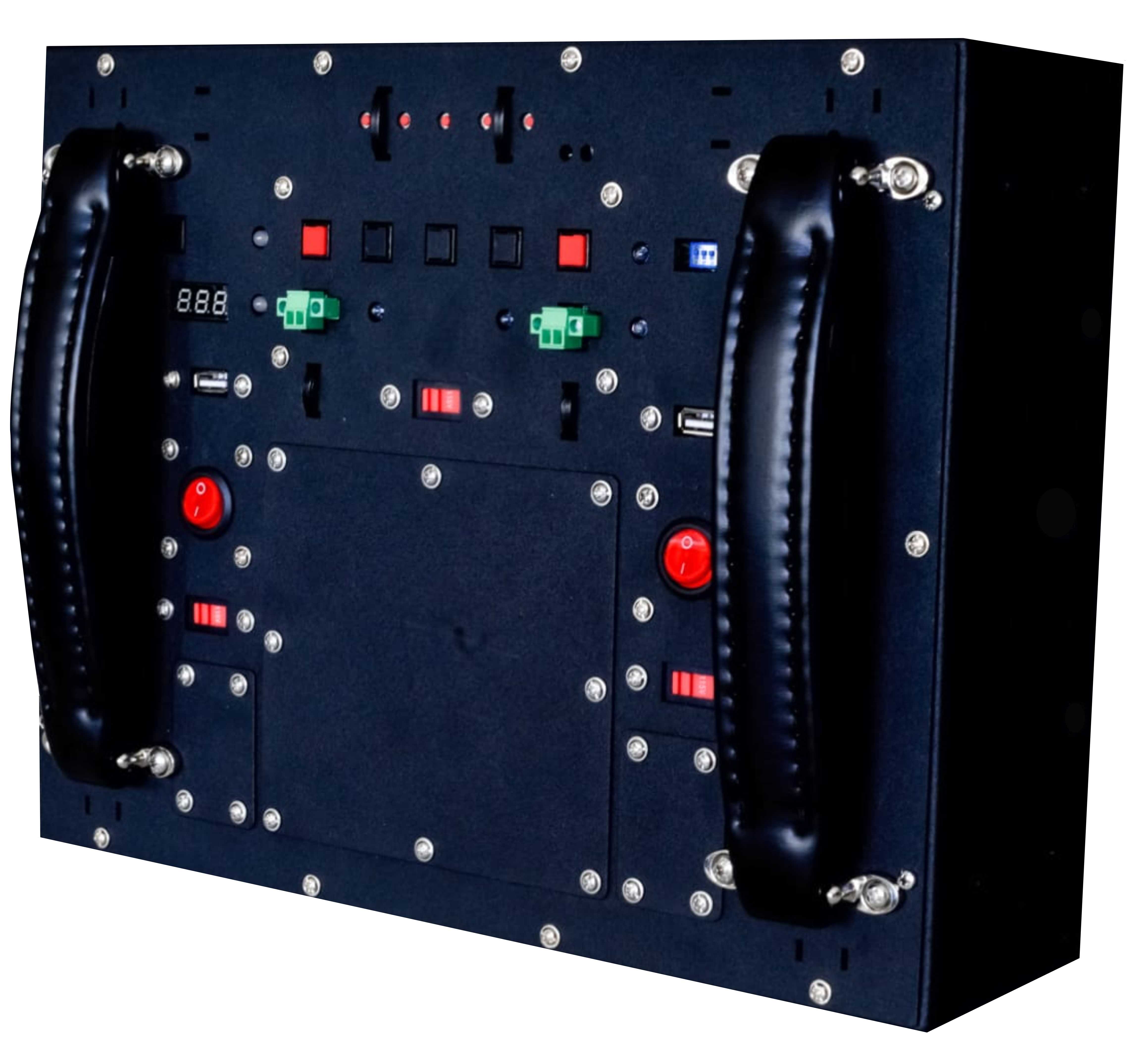

Provision for optional manual playback control by using switches provided on the back panel of the enclosure

Supports .avi, .mov, .mkv and .mp4 video file formats



Interfaces

USB drive interface for loading of video files

Built-in 2.0 channel speakers for audio output

Provision for switch panel controlled or remote controlled setup of the LCD display

Multiple activity, status and error indicating LEDs and Buzzers

Provision for optional connection to and from external HDMI interfaces

2 nos. switch controlled supply connectors for the provision of output power to external devices like LED strips, EL inverters, etc.



Software

Single panel user friendly interface with multiple shortcut keys and drop-down menus

WAV audio file format support with track duration of up to 15 mins.

Full playback control including selection of the playback start position

Serial comm. port support for connection to the wireless transmitter

Windows XP, Windows Vista, Windows 7 and Windows 10 compatible



Dimensions

330 x 256 x 96 mm. / 13 x 10.1 x 3.8 inches ( handles excluded )



Weight

4.2 Kgs. ( handles included )





ViewBicks 3.3 - Handheld Wireless Synchronous Video Displays - Brochure

ViewBicks 3.3 - Handheld Wireless Synchronous Video Displays - Brochure
