BM 510 - Multi-Function Repeater Display

Elektronik Lab - BM 510

Multi-Function Repeater Display

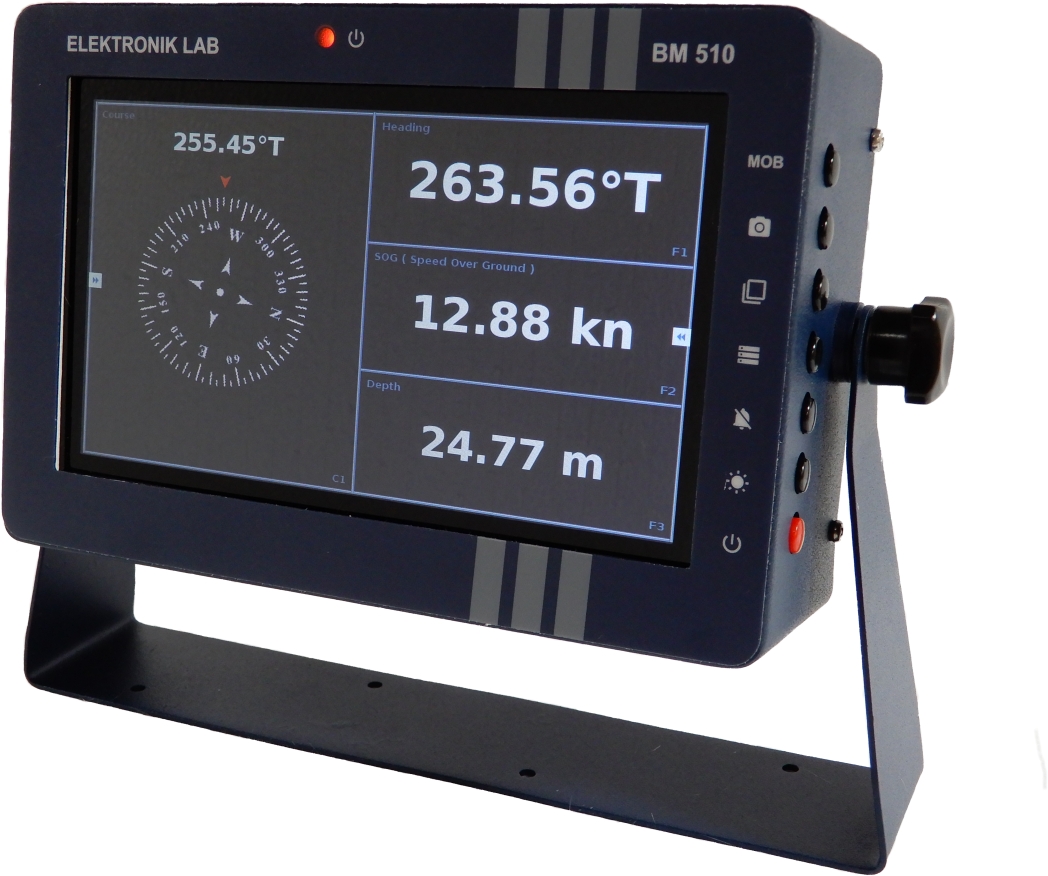

The BM 510 Multi-Function Repeater Display, with it’s excellent sunlight readability and adjustable Mounting Bracket, is Best Suitable for a Plethora of Table, Wall or Ceiling Mount Remote Digital NMEA Data Repeater applications.



Key Features



Multiple Numerical and Graphical Layout Options

Simple User / Service Configuration Setup Menu

Easy Screen Touch / Key Press Page Navigation



Wide Power Input Range and Protections

Wide View Angle 7 Inch Colour Touch Screen Display

LED Indicators for Power Status and Serial Monitor

Built-in 12 Hr. / 24 Hr. Real Time Clock ( RTC )



Serial NMEA Interface at Baud Rates up to 115200 bps.

RS 232 , RS 422 and USB Serial Data Input Support

Simultaneous RS 232 , RS 422 and USB Serial Data Outputs



Audible and Visual Alarm Output Alert

Screenshot Capture with Images Copyable to External USB Drive



Standard Warranty of 1 Year from the Date of Supply

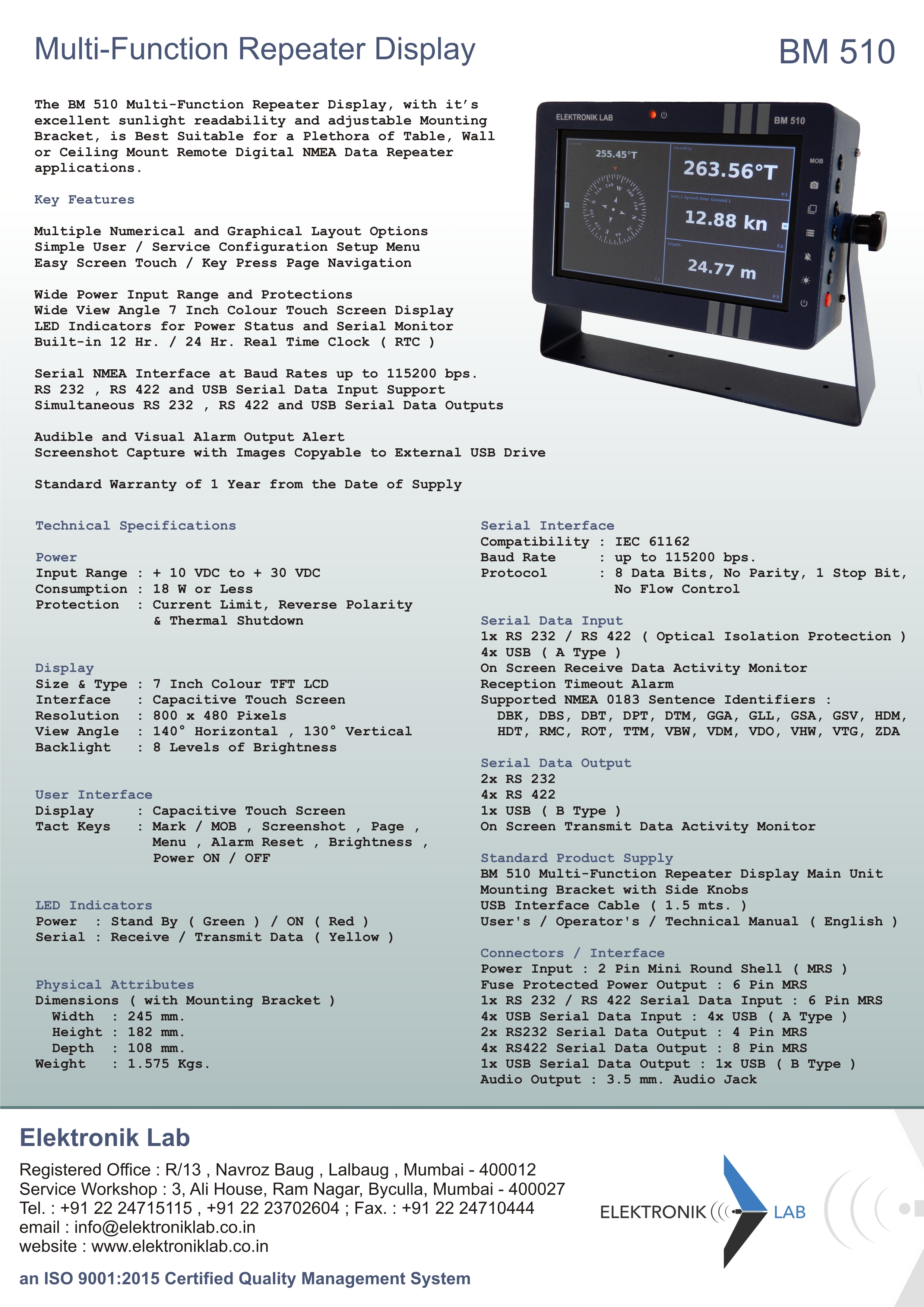

BM 510 - Multi-Function Repeater Display - Brochure ( Front )

BM 510 - Multi-Function Repeater Display - Brochure ( Front )

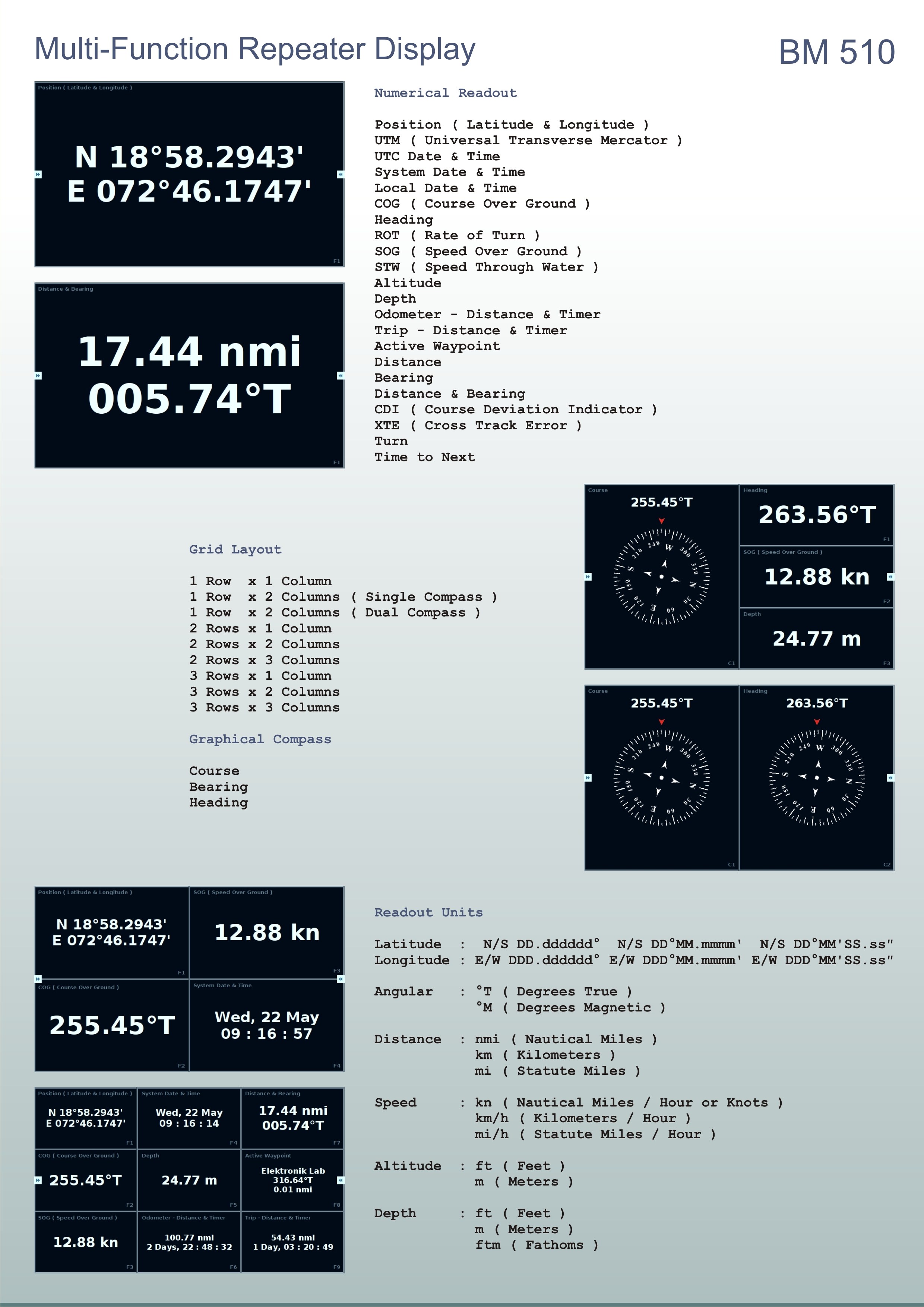

BM 510 - Multi-Function Repeater Display - Brochure ( Back )

BM 510 - Multi-Function Repeater Display - Brochure ( Back )





Technical Specifications



Power

Input Range : + 10 VDC to + 30 VDC

Consumption : 18 W or Less

Protection : Current Limit, Reverse Polarity & Thermal Shutdown



Display

Size & Type : 7 Inch Colour TFT LCD

Interface : Capacitive Touch Screen

Resolution : 800 x 480 Pixels

View Angle : 140° Horizontal , 130° Vertical

Backlight : 8 Levels of Brightness



User Interface

Display : Capacitive Touch Screen

Tact Keys : Mark / MOB , Screenshot , Page , Menu , Alarm Reset , Brightness , Power ON / OFF



LED Indicators

Power : Stand By ( Green ) / ON ( Red )

Serial : Receive / Transmit Data ( Yellow )



Physical Attributes

Dimensions ( with Mounting Bracket )

Width : 245 mm.

Height : 182 mm.

Depth : 108 mm.

Weight : 1.575 Kgs.



Serial Interface

Compatibility : IEC 61162

Baud Rate : up to 115200 bps.

Protocol : 8 Data Bits, No Parity, 1 Stop Bit, No Flow Control



Serial Data Input

1x RS 232 / RS 422 ( Optical Isolation Protection )

4x USB ( A Type )

On Screen Receive Data Activity Monitor

Reception Timeout Alarm

Supported NMEA 0183 Sentence Identifiers :

DBK, DBS, DBT, DPT, DTM, GGA, GLL, GSA, GSV, HDM,

HDT, RMC, ROT, TTM, VBW, VDM, VDO, VHW, VTG, ZDA



Serial Data Output

2x RS 232

4x RS 422

1x USB ( B Type )

On Screen Transmit Data Activity Monitor



Standard Product Supply

BM 510 Multi-Function Repeater Display Main Unit

Mounting Bracket with Side Knobs

USB Interface Cable ( 1.5 mts. )

User's / Operator's / Technical Manual ( English )



Connectors / Interface

Power Input : 2 Pin Mini Round Shell ( MRS )

Fuse Protected Power Output : 6 Pin MRS

1x RS 232 / RS 422 Serial Data Input : 6 Pin MRS

4x USB Serial Data Input : 4x USB ( A Type )

2x RS232 Serial Data Output : 4 Pin MRS

4x RS422 Serial Data Output : 8 Pin MRS

1x USB Serial Data Output : 1x USB ( B Type )

Audio Output : 3.5 mm. Audio Jack





BM 510 - Multi-Function Repeater Display

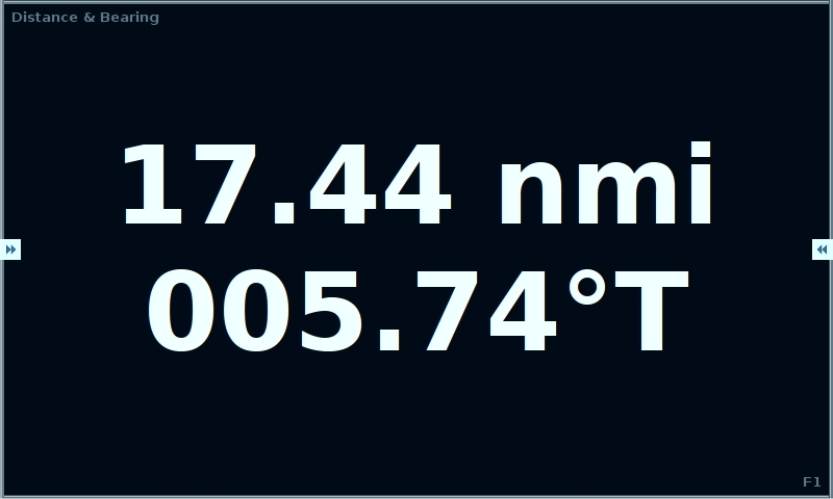

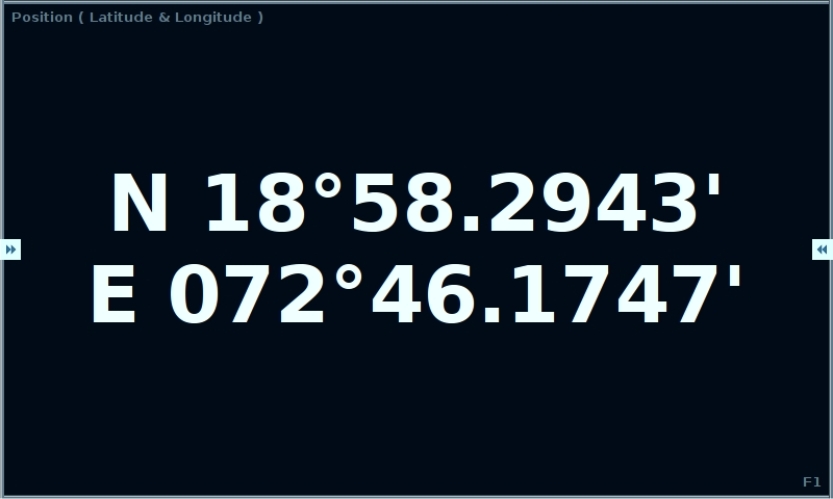

Numerical Readout

Position ( Latitude & Longitude ), UTM ( Universal Transverse Mercator ), UTC Date & Time, System Date & Time, Local Date & Time, COG ( Course Over Ground ), Heading, ROT ( Rate of Turn ), SOG ( Speed Over Ground ), STW ( Speed Through Water ), Altitude, Depth, Odometer - Distance & Timer, Trip - Distance & Timer, Active Waypoint, Distance, Bearing, Distance & Bearing, CDI ( Course Deviation Indicator ), XTE ( Cross Track Error ), Turn, Time to Next


BM 510 - Multi-Function Repeater Display

BM 510 - Multi-Function Repeater Display

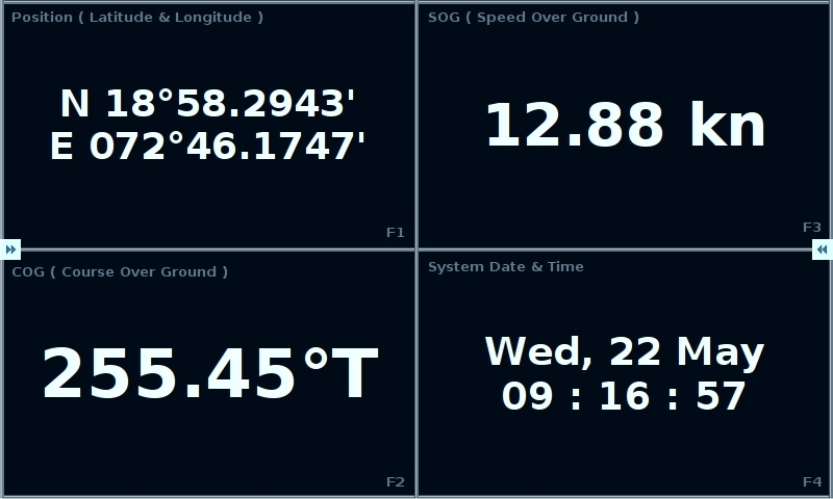

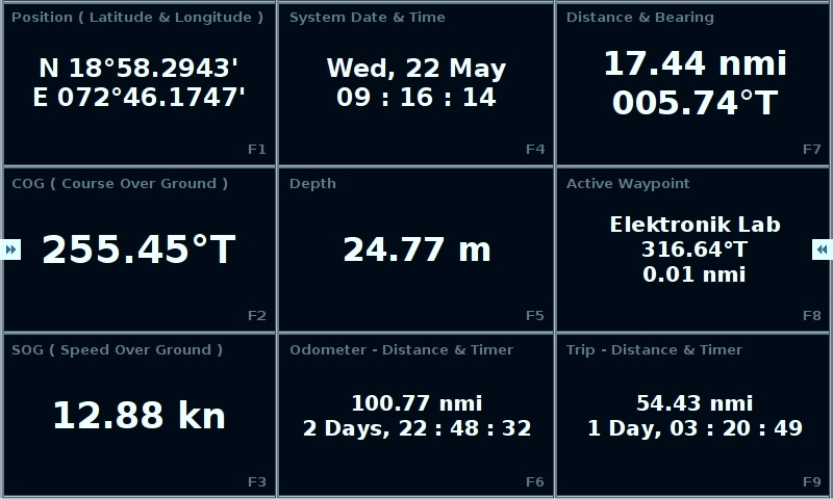

Grid Layout

1 Row x 1 Column, 1 Row x 2 Columns ( Single Compass ), 1 Row x 2 Columns ( Dual Compass ), 2 Rows x 1 Column, 2 Rows x 2 Columns, 2 Rows x 3 Columns, 3 Rows x 1 Column, 3 Rows x 2 Columns, 3 Rows x 3 Columns

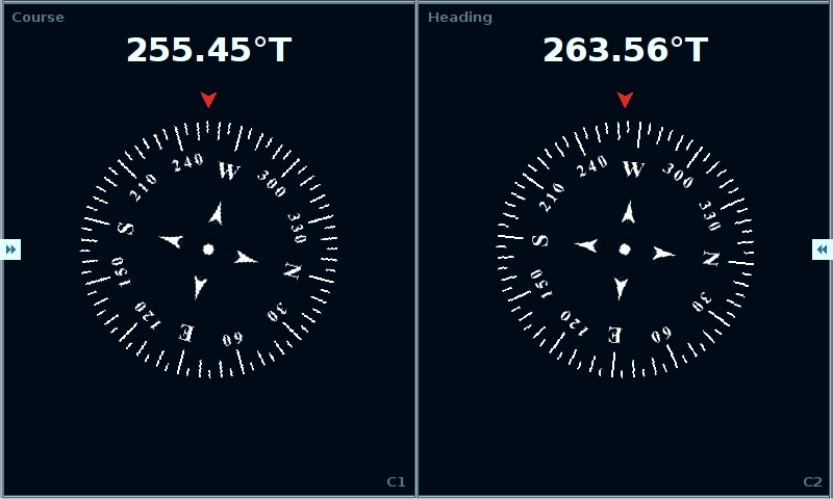

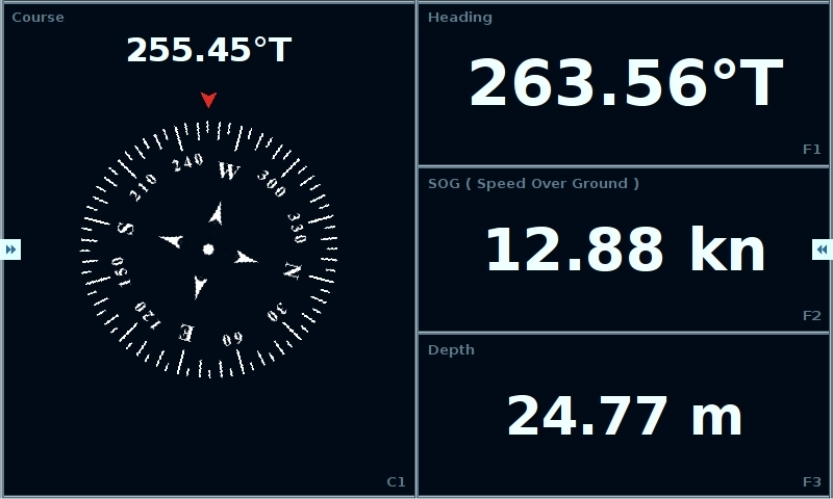

Graphical Compass

Course, Bearing, Heading


BM 510 - Multi-Function Repeater Display

BM 510 - Multi-Function Repeater Display

Readout Units

Latitude : N/S DD.dddddd° N/S DD°MM.mmmm' N/S DD°MM'SS.ss"

Longitude : E/W DDD.dddddd° E/W DDD°MM.mmmm' E/W DDD°MM'SS.ss"

Angular : °T ( Degrees True ) / °M ( Degrees Magnetic )

Distance : nmi ( Nautical Miles ) / km ( Kilometers ) / mi ( Statute Miles )

Speed : kn ( Nautical Miles / Hour or Knots ) / km/h ( Kilometers / Hour ) / mi/h ( Statute Miles / Hour )

Altitude : ft ( Feet ) / m ( Meters )

Depth : ft ( Feet ) / m ( Meters ) / ftm ( Fathoms )


BM 510 - Multi-Function Repeater Display


BM 510 - Multi-Function Repeater Display - Brochure ( Front )

BM 510 - Multi-Function Repeater Display - Brochure ( Front )

BM 510 - Multi-Function Repeater Display - Brochure ( Back )

BM 510 - Multi-Function Repeater Display - Brochure ( Back )
