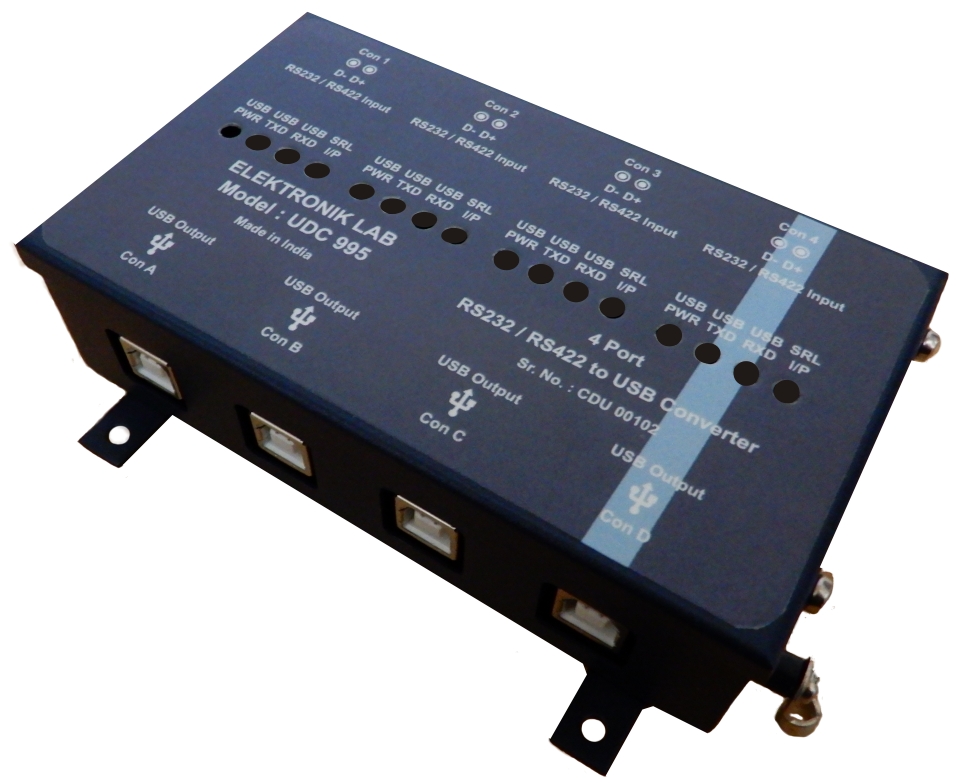

4 Port RS232 / RS422 to USB Converter
The UDC 995 - RS 232 / RS 422 to USB Converter consists of 4 independent and isolated ports designed to convert between the RS 232 / RS 422 and USB serial data interfaces at baud rates up to 115200 bps.
Each of the 4 ports on the UDC 995 are self powered as they utilize the +5 VDC from their respective USB ports and hence no external supply input is necessary to power the equipment.
With multiple LED indicators provided to indicate power status as well as serial data activity on the input and output ports ; the UDC 995 is best suitable for applications that require a safe and reliable conversion between the RS 232 / RS 422 and USB serial data formats.
The UDC 995 is provided with optical isolation protection on each of its serial data input ports and is USB compatible with most of the operating systems.
The UDC 995 comes with a standard warranty of 1 Year from the date of supply of the equipment.

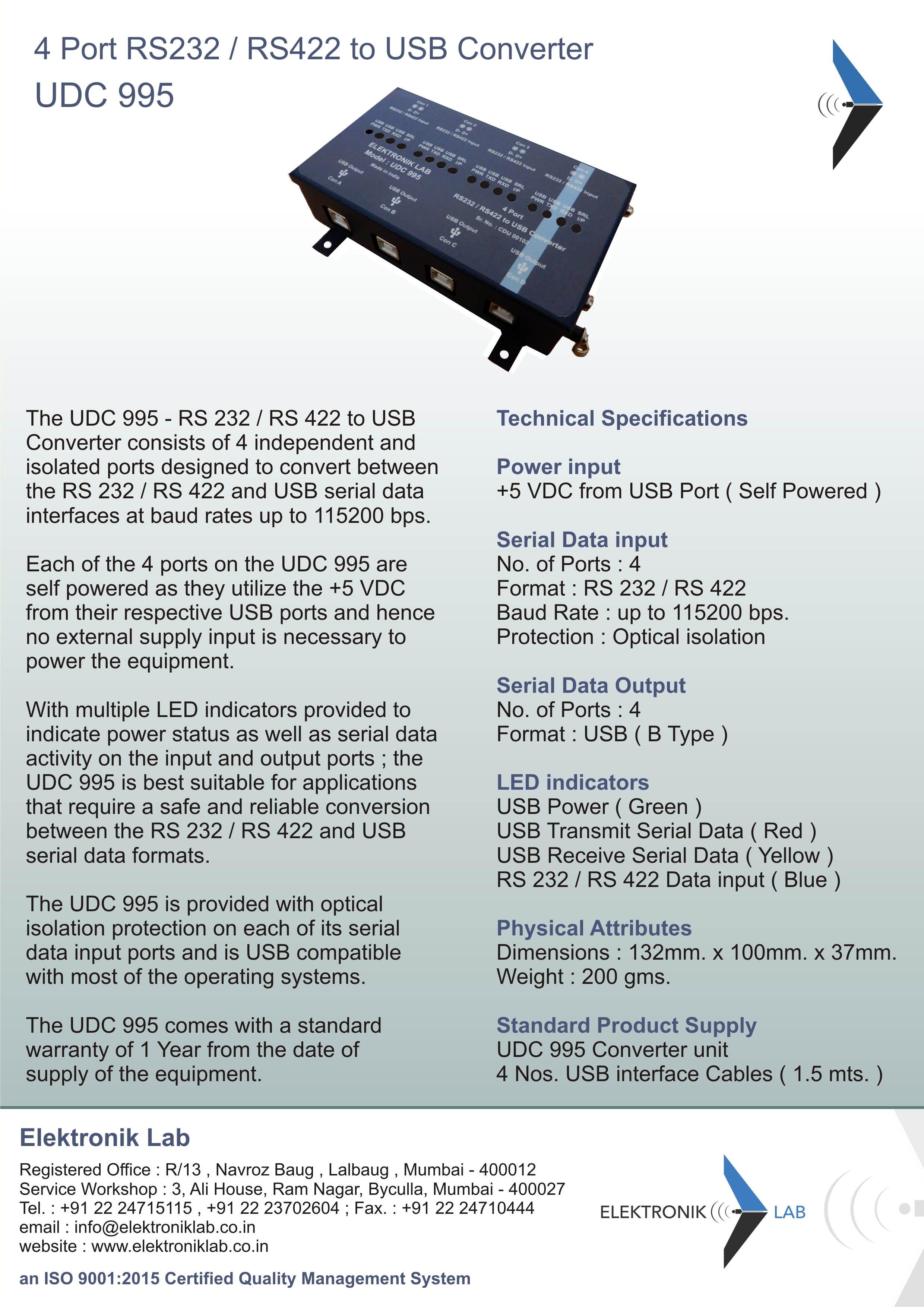

UDC 995 - 4 Port RS232 / RS422 to USB Converter - Brochure
Technical Specifications
Power input
+5 VDC from USB Port ( Self Powered )
Serial Data input
No. of Ports : 4
Format : RS 232 / RS 422
Baud Rate : up to 115200 bps.
Protection : Optical isolation
Serial Data Output
No. of Ports : 4
Format : USB ( B Type )
LED indicators
USB Power ( Green )
USB Transmit Serial Data ( Red )
USB Receive Serial Data ( Yellow )
RS 232 / RS 422 Data input ( Blue )
Physical Attributes
Dimensions : 132mm. x 100mm. x 37mm.
Weight : 200 gms.
Standard Product Supply
UDC 995 Converter unit
4 Nos. USB interface Cables ( 1.5 mts. )

UDC 995 - 4 Port RS232 / RS422 to USB Converter - Brochure
