Mains & Battery Supply Monitor

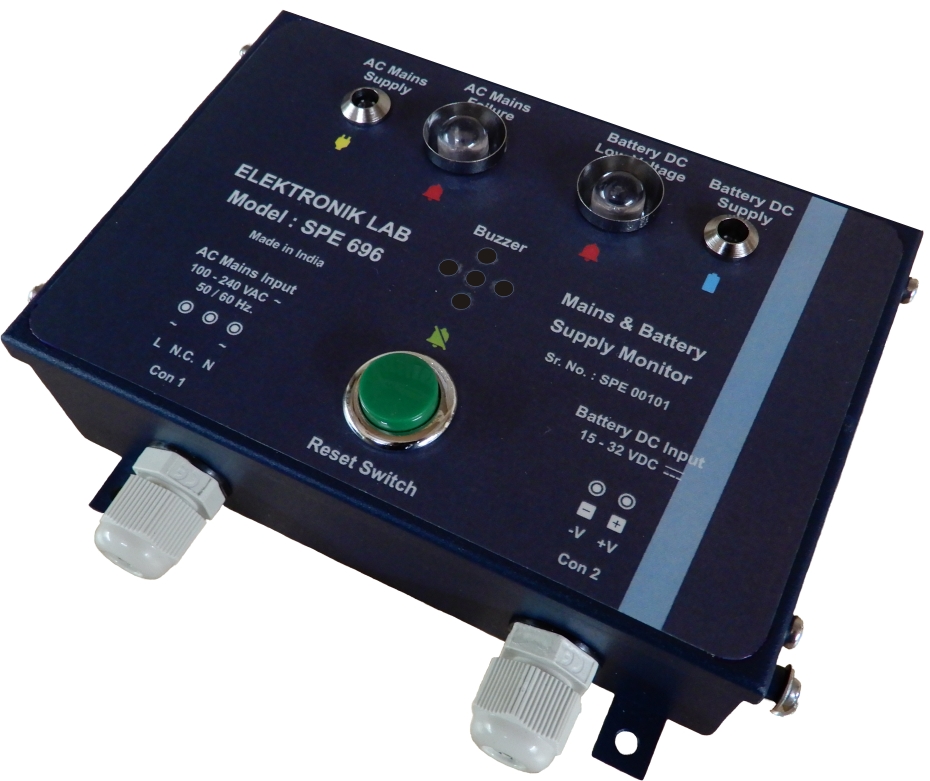

The SPE 696 Mains and Battery Supply Monitor is designed to continuously monitor the status of the AC Mains and Battery DC power supplies connected to itself and to provide a visual and audible alarm alert in case of any abnormality.
The AC Mains supply is monitored for its interruption or failure , and if detected , a dedicated failure visual alarm is indicated and a common audible alarm is triggered. A separate visual indication for AC Mains supply active status is also provided indicating at all times the presence or absence of the AC Mains supply source.
The Battery DC supply is monitored for its voltage , and if found below a set limit value ( which can be adjusted using a built - in Potentiometer ) , a dedicated low voltage visual alarm is indicated and the common audible alarm is triggered.
Both the visual alarm indications are reset automatically on the restoration of the normal operating conditions and cannot be reset manually. The common audible alarm can only be muted manually using the reset switch provided on the unit. Any new alarm conditions will reactivate visual and audible alarms.
The SPE 696 comes with a standard warranty of 1 Year from the date of supply of the equipment.

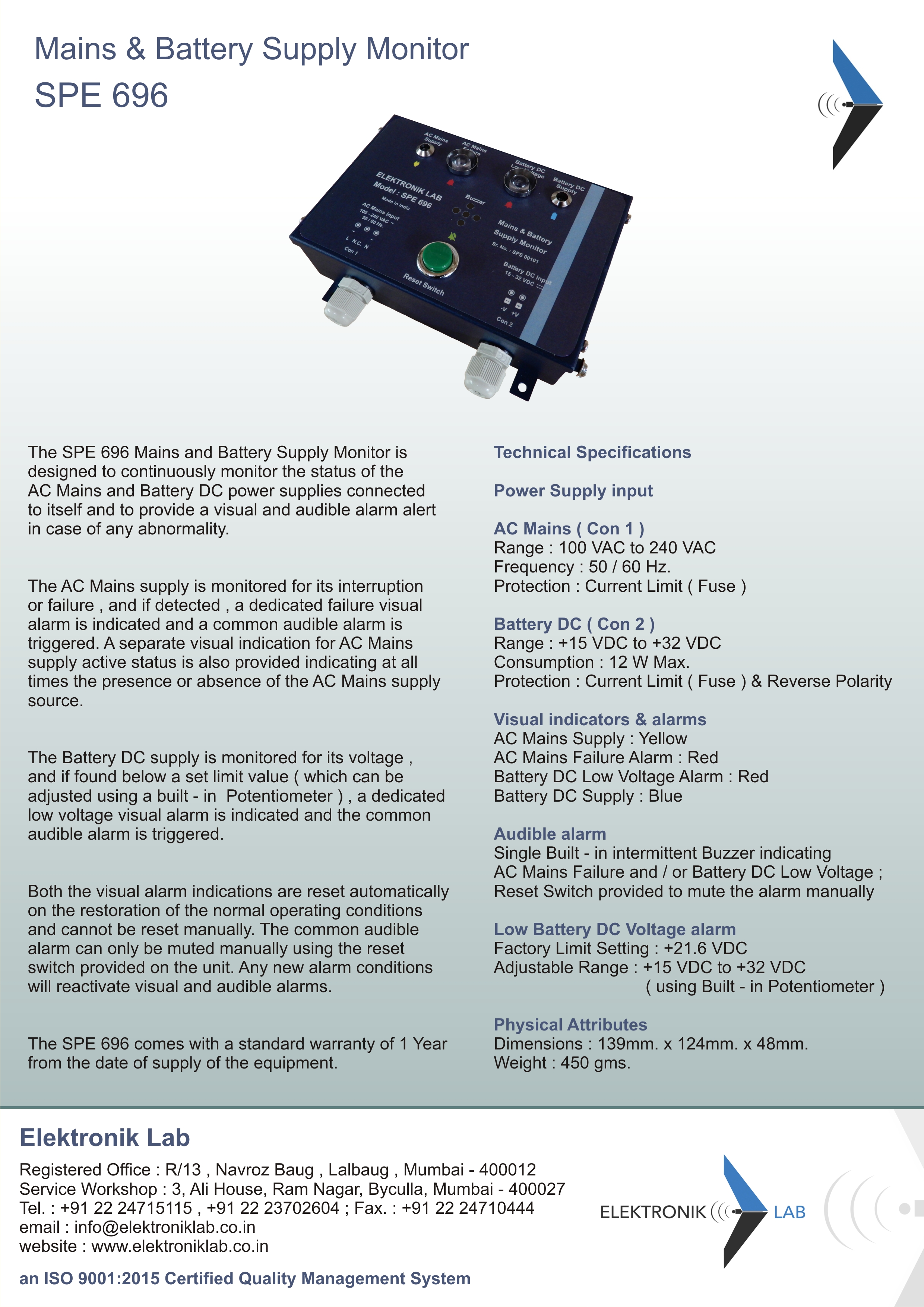

SPE 696 - Mains & Battery Supply Monitor - Brochure
Technical Specifications
Power Supply input
AC Mains ( Con 1 )
Range : 100 VAC to 240 VAC
Frequency : 50 / 60 Hz.
Protection : Current Limit ( Fuse )
Battery DC ( Con 2 )
Range : +15 VDC to +32 VDC
Consumption : 12 W Max.
Protection : Current Limit ( Fuse ) & Reverse Polarity
Visual indicators & alarms
AC Mains Supply : Yellow
AC Mains Failure Alarm : Red
Battery DC Low Voltage Alarm : Red
Battery DC Supply : Blue
Audible alarm
Single Built - in intermittent Buzzer indicating AC Mains Failure and / or Battery DC Low Voltage
Reset Switch provided to mute the alarm manually
Low Battery DC Voltage alarm
Factory Limit Setting : +21.6 VDC
Adjustable Range : +15 VDC to +32 VDC ( using Built - in Potentiometer )
Physical Attributes
Dimensions : 139mm. x 124mm. x 48mm.
Weight : 450 gms.
