Developments :





SpecTrain - EL Controller / Sequencer

Clientele : Event & Show Organisers, Choreographers, Dancers, Entertainers, Movie Makers, etc.



Techniques Merged - SpecTrain - EL Controller / Sequencer


Key Features : Wireless RF Transmitter / Receiver



• Operates on the 2.5 GHz. ISM and SRD Frequency Band

• + 9 V DC Power Input with On Board Reverse Polarity Protection

• DC Power Input and RF Data Transmission / Reception indicator LEDs

• Optically Isolated Serial Data Interface for connection to PC

• Support for up to 32 Address / Costume ( not included ) Identifiers ( See Note )

• 8 EL / LED Output Channels per Address / Costume for connection to EL / LED Devices

• On Board Port for connection to External AC Inverter ( not included ) for EL Devices

• Complete isolation between AC and DC sides ( Safe and Shock Proof )

• Configuration Setup using On Board 8 Pin DIP Switch

• Continuous Sync Word search acting as Unique System Identifier

• Checksum Transmission / Reception for Error Detection and Correction

• 30 Feet Guaranteed Maximum Wireless RF Coverage Range ( See Note )

• 100 ms. Guaranteed Maximum Sequence Update Interval ( See Note )

• Dimensions : 152 mm. x 100 mm. x 43 mm.



Key Features : Graphic User Interface Software



• Windows XP , Windows Vista and Windows 7 Compatible

• Single Panel User Friendly Interface with multiple Shortcut Keys and Dropdown Menus

• WAV ( *.wav ) Audio File Format Support with Track Duration up to 15 mins.

• Full Playback Control including Loop ( Repeat ) and At till To Playback Mode

• Dual Channel ( Left / Right ) Waveform Display with Progress Indicator

• 9 Amplitude Scale Zoom Levels and 9 Time Scale Span Selections

• Serial Comm. Port Support for connection to Wireless RF Transmitter

• Support for Remote Configuration Setup of Wireless RF Transmitter



Note : Performance Parameters subject to change under External RF Interference conditions



SpecTrain - EL Controller / Sequencer

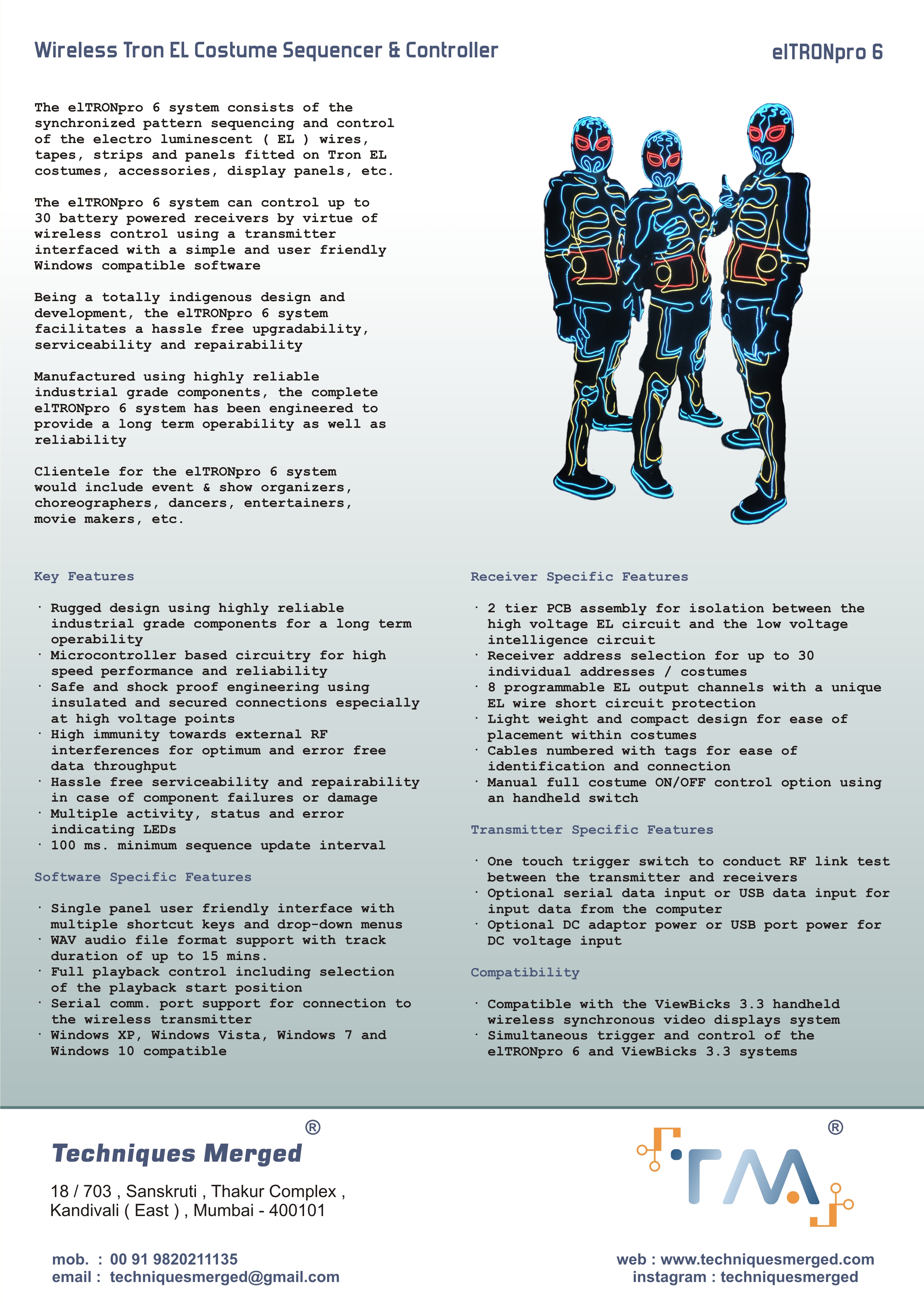

SpecTrain - EL Controller / Sequencer - Brochure





EM 406 - Beacon Decoder Receiver



Amalgamated Wireless Pvt. Ltd. - EM 406 - Beacon Decoder Receiver


Key Features :



• 20 x 4 Character Liquid Crystal Display ( LCD ) with Backlight

• 6 Key User / Service Interface with Simple Configuration Setup Menu

• Front Panel LED Indicators for Received Signal , Own Beacon Alarm and Other Beacon Alarm

• Service Setup Menu Password Protected with 4 Digit Security Pass Code

• UTC Date and Time Source using Internal Real Time Clock ( RTC ) or External GPS

• Optically Isolated IEC 61162 Compatible GPS Serial Data Input ( NMEA 0183 ) Interface

• Surge and Transient Immunity Protection on the Serial Data Input and Outputs

• +10 V DC to +32 V DC Power Input with Current Limit ( Fuse ) and Reverse Polarity Protection

• Internal Built - In and / or External Whip Antenna



• Detects COSPAS SARSAT EPIRB Frequency Channels from 406.025 MHz. to 406.040 MHz.

• Demodulates Phase Modulated ( PSK ) Signals with BiPhase - L ( Manchester ) Data Decoding

• Decodes all COSPAS SARSAT EPIRB Message Formats ( Short and Long ) and Protocols

• Decodes Normal ( Live ) as well as Self Test Beacon Bursts

• Programmable with Own Beacon 9 Digit MMSI Number ( Country Code + Identity )

• Beacon Burst Error Indication on Detection of Framing / Data Errors

• Serial Transfer of Decoded Data to Computer in Printable Format

• Message Logging of Decoded Data for up to 25 Messages in Internal EEPROM Memory

• Audible and Visual Alarm with additional Remote Alarm Relay Output



• Decoded Data includes :

   Date , Time , Date Time Source ( RTC / GPS ) , Beacon Source ( Own / Other ) ,

   Burst Mode ( Normal ( Live ) / Self Test ) , Message Format ( Short / Long ) , Protocol Flag ,

   Country Code , Identity , Specific Beacon No. , Radio Locating Device , Beacon Activation ,

   Position Data Source ( External / Internal ) , Beacon Message ( Hex ) and 15 HEX ID ( Hex )

• Can be used as a 406 MHz. COSPAS SARSAT Emergency Position Indicating Radio Beacon

  ( EPIRB ) Tester

• Standard 2 Year Calibration Cycle with Certificate of Calibration Provided



• Dimensions : 181 mm. ( width ) x 116 mm. ( height ) x 82 mm. ( depth )

• Weight : 1050 gms.



EM 406 - Beacon Decoder Receiver

EM 406 - Beacon Decoder Receiver - Brochure



EM 406 - Beacon Decoder Receiver

EM 406 - Beacon Decoder Receiver - Operator's Manual





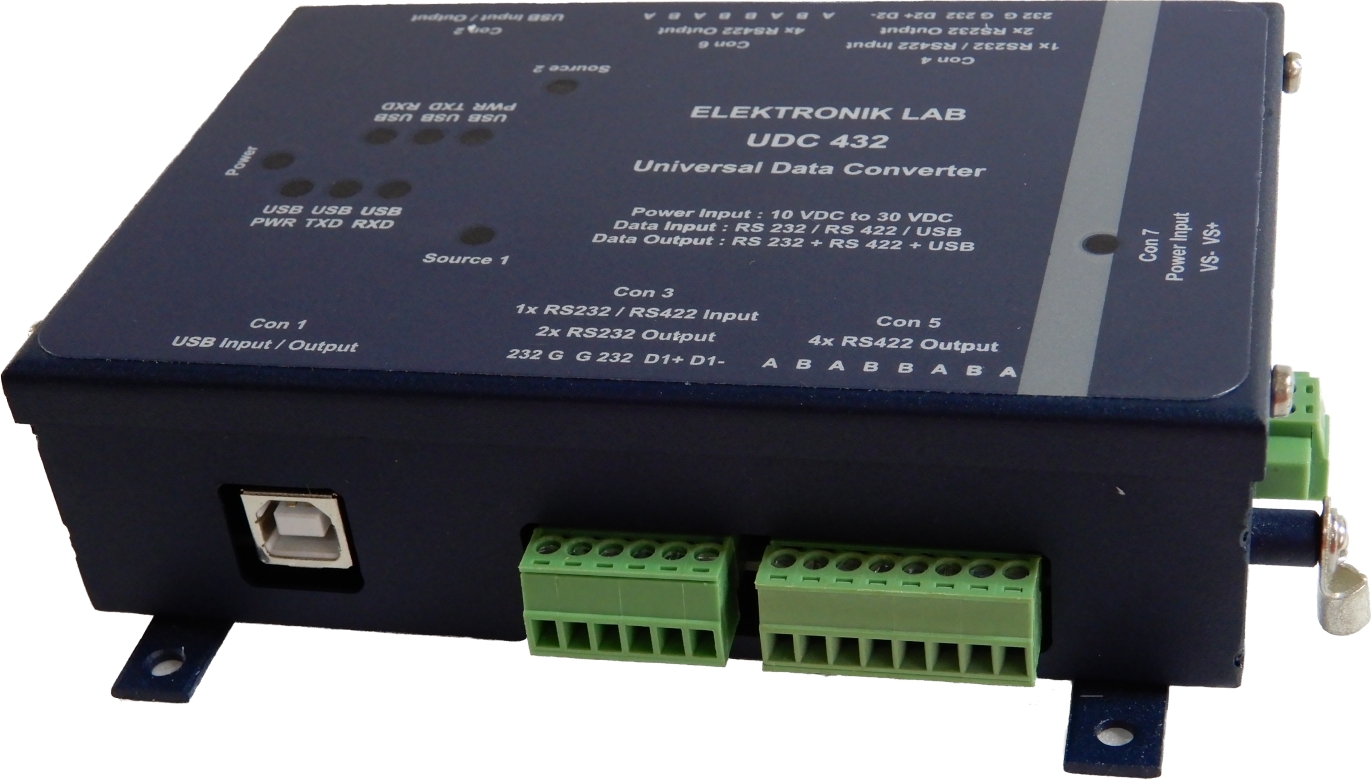

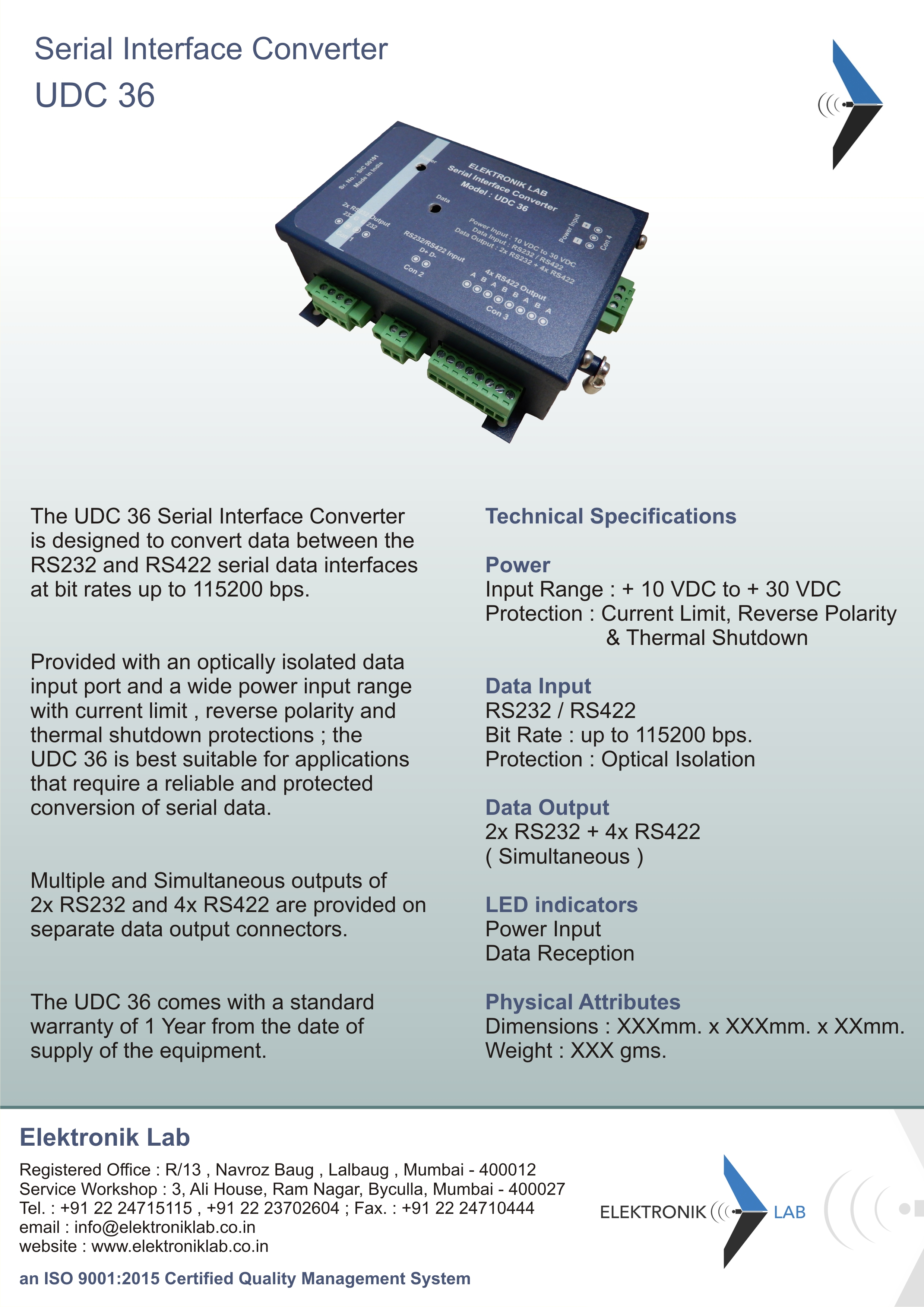

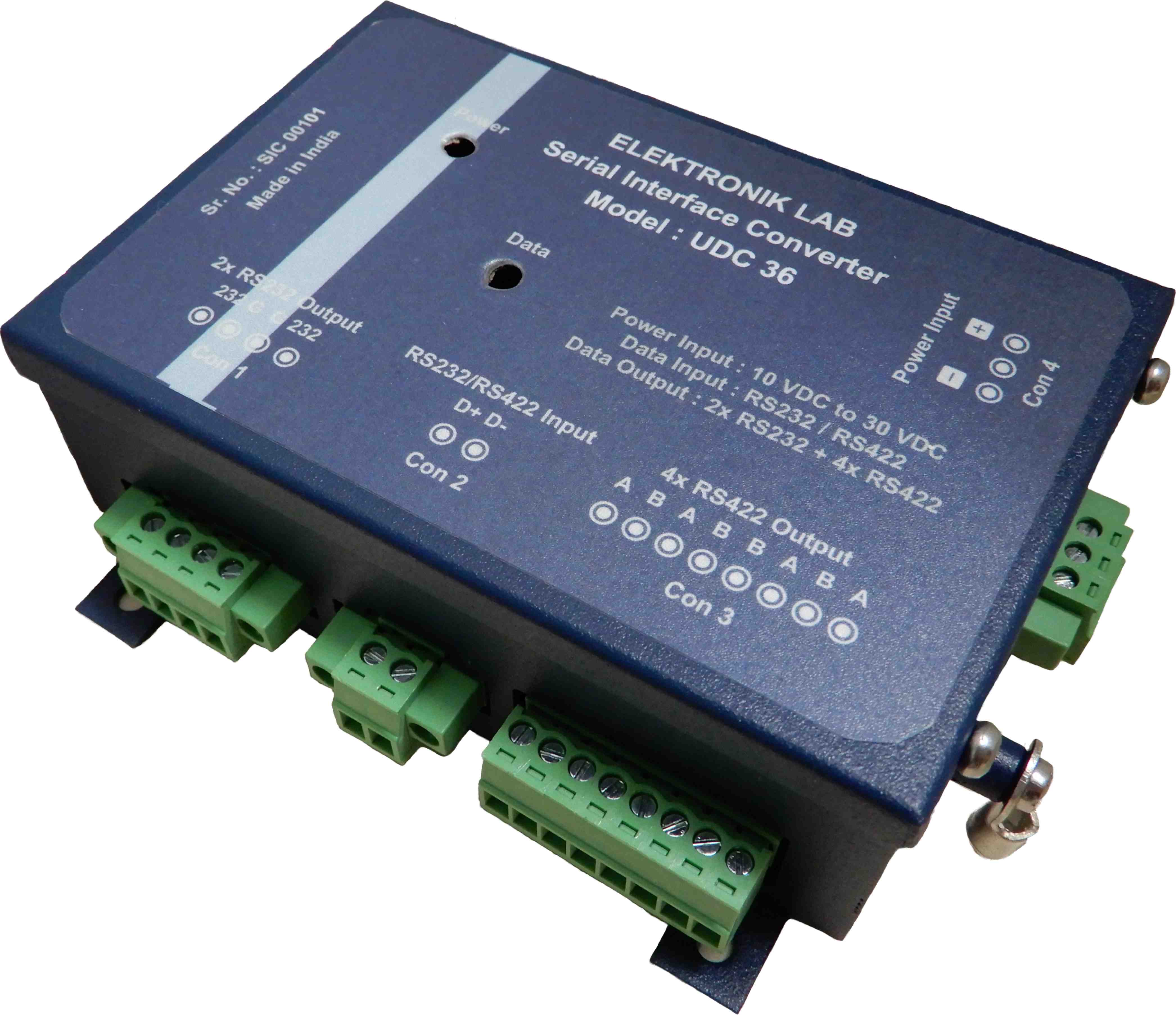

UDC 100 / 300 / 500 - Universal Data Converters



Elektronik Lab - UDC 100 / 300 / 500 - Universal Data Converter


• +10 VDC to +32 VDC Power Input Range.

• Built-In Current Limit , Reverse Polarity & Thermal Shutdown Protection.

• Data Bit Rate up to 115200 bps.

• Multiple & Simultaneous RS 232 & RS 422 Outputs.

• Optical Isolation on the Data Input.

• Transient Immunity & Surge Protection on the Data Input & Outputs.

• LED Indication for Power Input & Data Reception.



UDC 100 300 500 - Universal Data Converter

UDC 100 300 500 - Universal Data Converter - Brochure





FST 51 - BNWAS ( Bridge Navigational Watch Alarm System )



Elektronik Lab - FST 51 - BNWAS ( Bridge Navigational Watch Alarm System )

Elektronik Lab - FST 51 - BNWAS ( Bridge Navigational Watch Alarm System )

Elektronik Lab - FST 51 - BNWAS ( Bridge Navigational Watch Alarm System )


• 20 x 4 LCD Display with Backlight | 4 x 2 Seven Segment Display.

• Display of Operational Mode , Countdown Timer , SOG ( GPS ) in Kts. , Autopiot Status.

• Dormant Period : 3 Mins. To 12 Mins.

• Automatic & Manual Off / On Operational Mode.

• 4 Key User / Service Interface.

• Hardware ( Lock ) & Software ( Password ) Protection.



• Visual / Audible Alarm Reset Switch on the Main Unit & Remote Units on the Bridge.

• Emergency Call / Immediate Assistance Switch on Main Unit & Remote Units on the Bridge.

• Test Switches on the Main Unit & Remote Units to Test ( Simulate ) the Visual & Audible Alarms.



• External Motion Detector Interface ( Optional )

• Heading / Track Control System ( Autopilot ) Serial / Contact Closure / Voltage Interface Input.

• Global Positioning System ( GPS ) Serial Interface Input.

• VDR / S-VDR ( $BNALR, ) Serial Interface Output.

• Computer / External Software ( $ELFST, ) Serial Interface Output ( Proprietary )



• Remote Units for Conning Position on the Bridge , Workstation for Navigating and Manoeuvring on the Bridge ( Optional ) , Workstation for Monitoring on the Bridge ( Optional ) , Bridge Wings ( Optional ) , Captain's / Master's Location , Backup Officer 1 Location ( Optional ) , Backup Officer 2 Location ( Optional ) and for the Location of further Crew Members.



FST 51 - BNWAS ( Bridge Navigational Watch Alarm System )

FST 51 - BNWAS - Brochure
