BM 510 - Beacon Decoder Receiver

Elektronik Lab - BM 510

Beacon Decoder Receiver



Key Features



Receives, Demodulates and Decodes signals from 406 MHz. COSPAS SARSAT Beacons including ...

EPIRBs ( Emergency Position-indicating Radio Beacons ),

ELTs ( Emergency Locator Transmitters ), and

PLBs ( Personal Locator Beacons )



Decodes all Message Formats and Protocols

Decodes Normal ( Live ) as well as Self Test Bursts

Provides an error alert on detection of Bursts containing Framing / Data errors

Visual and audible alert on reception of Valid Bursts

Storage of Decoded Data for up to 99 Messages

Serial as well as USB Drive transfer of Decoded Data to Personal Computer in Printable Test Report Format

ideal for use as a 406 MHz. COSPAS SARSAT Beacon Tester



Built-in 12 Hr. / 24 Hr. Real Time Clock ( RTC )

Date and Time Source using Built-in Real Time Clock or interface to external GPS

Serial NMEA interface at Baud Rates up to 115200 bps.

Simultaneous RS232, RS422 and USB Serial Data outputs

RS232, RS422 and USB Serial Data input Support



( Wide View Angle ) 7 inch Colour Touch Screen Display

LED indicators for Power Status & Serial Data Monitor

Wide DC Power input Range and Protections



Easy to use Screen Touch or Key Press Page Navigation

Simple User and Service Configuration Setup Menus

Screenshot Capture feature with images Copyable to external USB Drive



Standard 2 Year Calibration Cycle

Standard Warranty of 1 Year from the Date of Supply

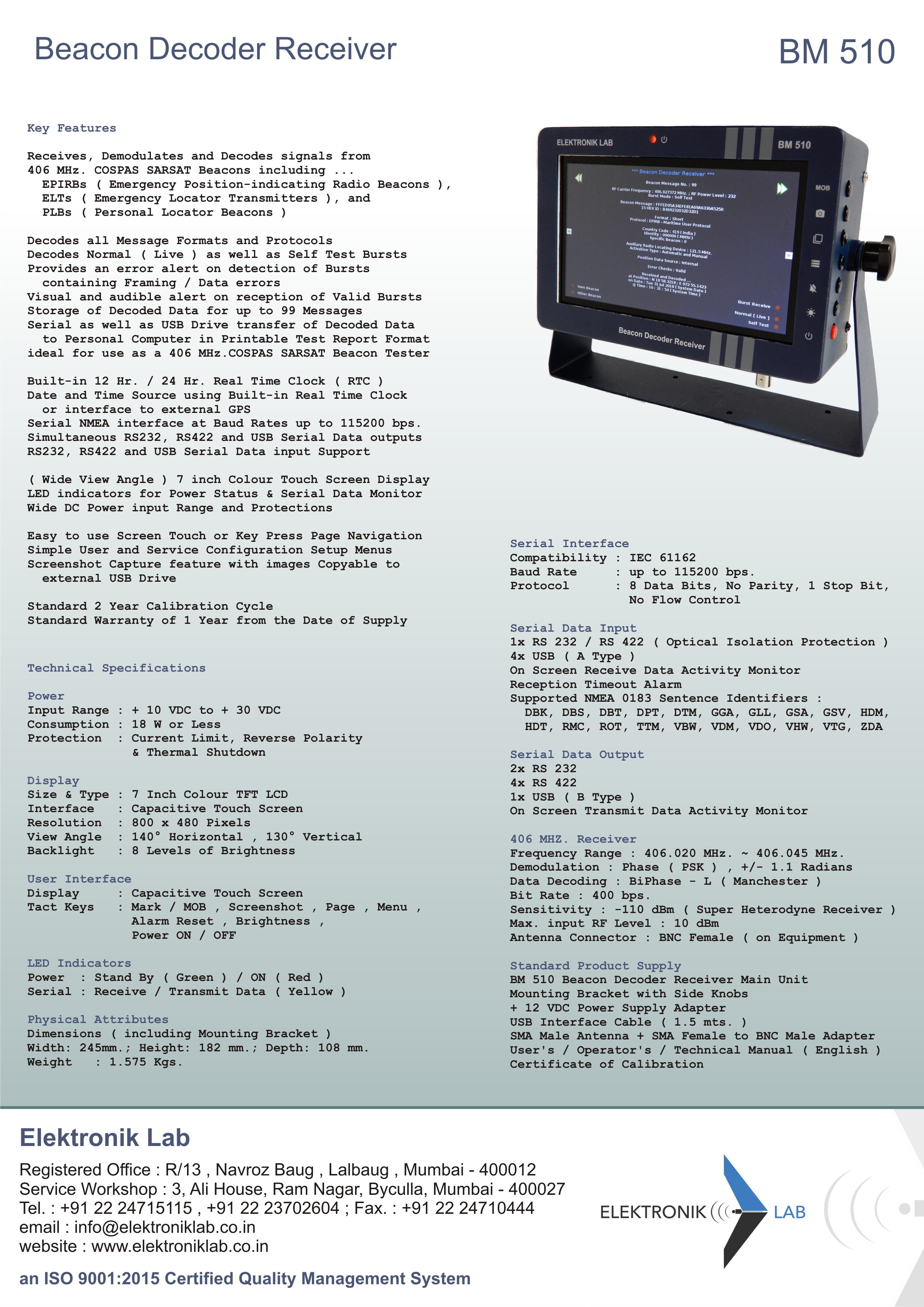

BM 510 - Beacon Decoder Receiver - Brochure ( Front )

BM 510 - Beacon Decoder Receiver - Brochure ( Front )

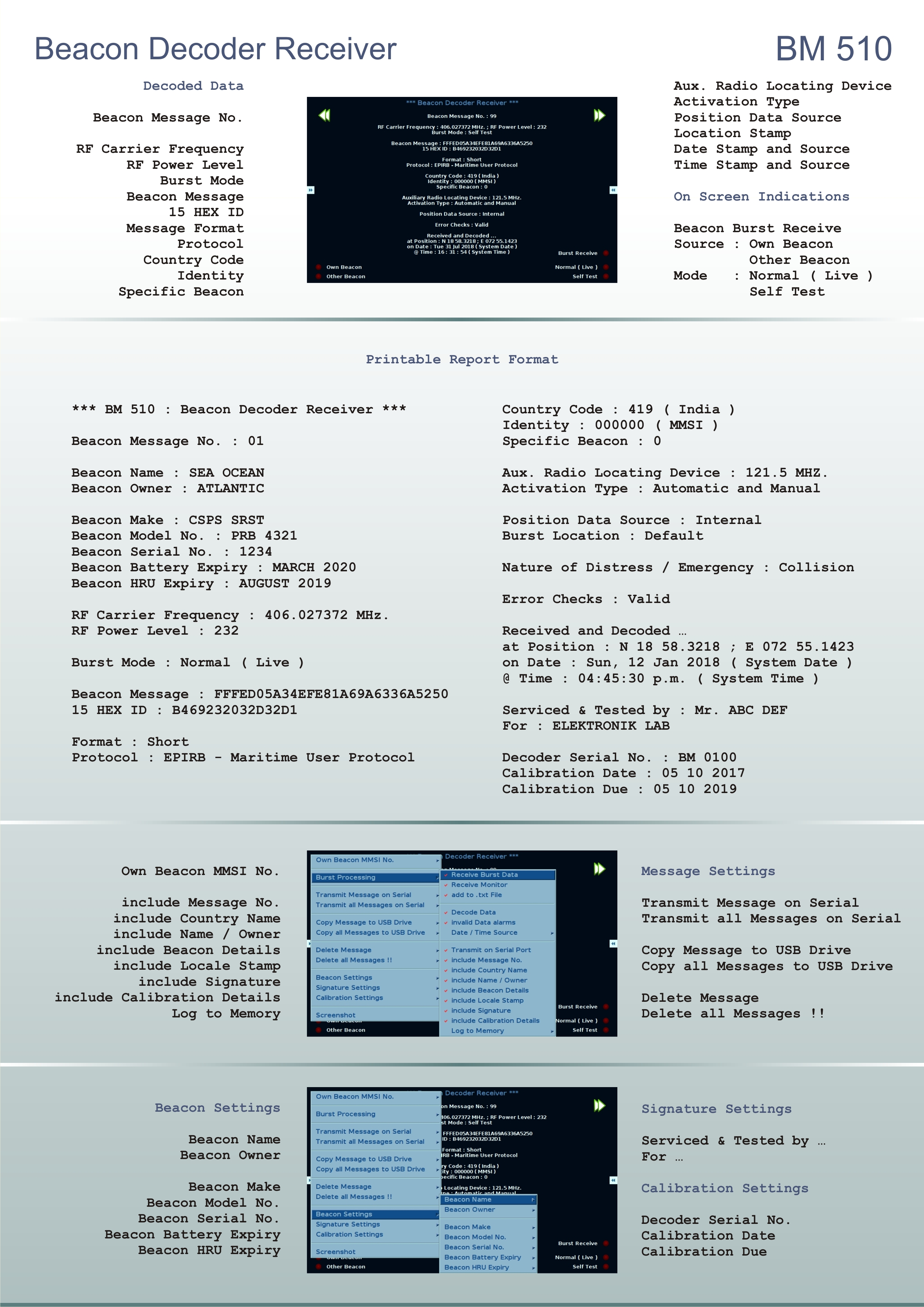

BM 510 - Beacon Decoder Receiver - Brochure ( Back )

BM 510 - Beacon Decoder Receiver - Brochure ( Back )





Technical Specifications



Power

Input Range : + 10 VDC to + 30 VDC

Consumption : 18 W or Less

Protection : Current Limit, Reverse Polarity & Thermal Shutdown



Display

Size & Type : 7 Inch Colour TFT LCD

Interface : Capacitive Touch Screen

Resolution : 800 x 480 Pixels

View Angle : 140 Horizontal , 130 Vertical

Backlight : 8 Levels of Brightness



User Interface

Display : Capacitive Touch Screen

Tact Keys : Mark / MOB , Screenshot , Page , Menu , Alarm Reset , Brightness , Power ON / OFF



LED Indicators

Power : Stand By ( Green ) / ON ( Red )

Serial : Receive / Transmit Data ( Yellow )



Physical Attributes

Dimensions ( including Mounting Bracket )

Width: 245mm.; Height: 182 mm.; Depth: 108 mm.

Weight : 1.575 Kgs.



Serial Interface

Compatibility : IEC 61162

Baud Rate : up to 115200 bps.

Protocol : 8 Data Bits, No Parity, 1 Stop Bit, No Flow Control



Serial Data Input

1x RS 232 / RS 422 ( Optical Isolation Protection )

4x USB ( A Type )

On Screen Receive Data Activity Monitor

Reception Timeout Alarm

Supported NMEA 0183 Sentence Identifiers :

DBK, DBS, DBT, DPT, DTM, GGA, GLL, GSA, GSV, HDM,

HDT, RMC, ROT, TTM, VBW, VDM, VDO, VHW, VTG, ZDA



Serial Data Output

2x RS 232

4x RS 422

1x USB ( B Type )

On Screen Transmit Data Activity Monitor



406 MHZ. Receiver

Frequency Range : 406.020 MHz. ~ 406.045 MHz.

Demodulation : Phase ( PSK ) , +/- 1.1 Radians

Data Decoding : BiPhase - L ( Manchester )

Bit Rate : 400 bps.

Sensitivity : -110 dBm ( Super Heterodyne Receiver )

Max. input RF Level : 10 dBm

Antenna Connector : BNC Female ( on Equipment )



Standard Product Supply

BM 510 Beacon Decoder Receiver Main Unit

Mounting Bracket with Side Knobs

+ 12 VDC Power Supply Adapter

USB Interface Cable ( 1.5 mts. )

SMA Male Antenna + SMA Female to BNC Male Adapter

User's / Operator's / Technical Manual ( English )

Certificate of Calibration

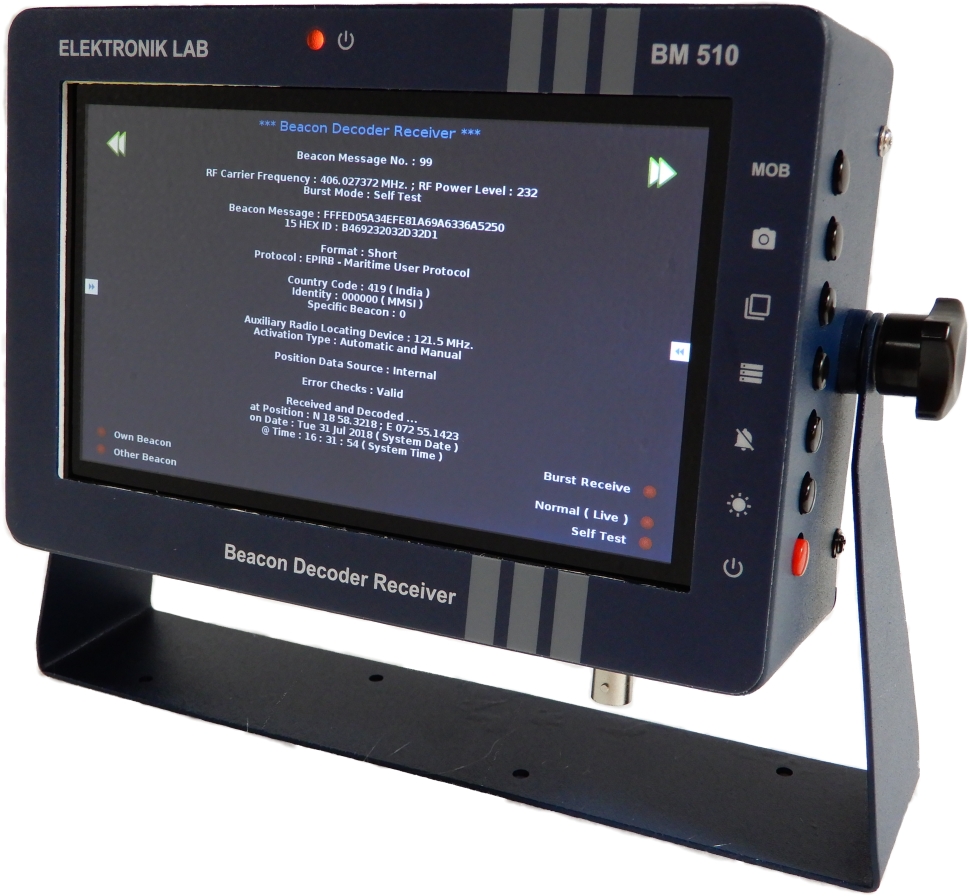

BM 510 - Beacon Decoder Receiver

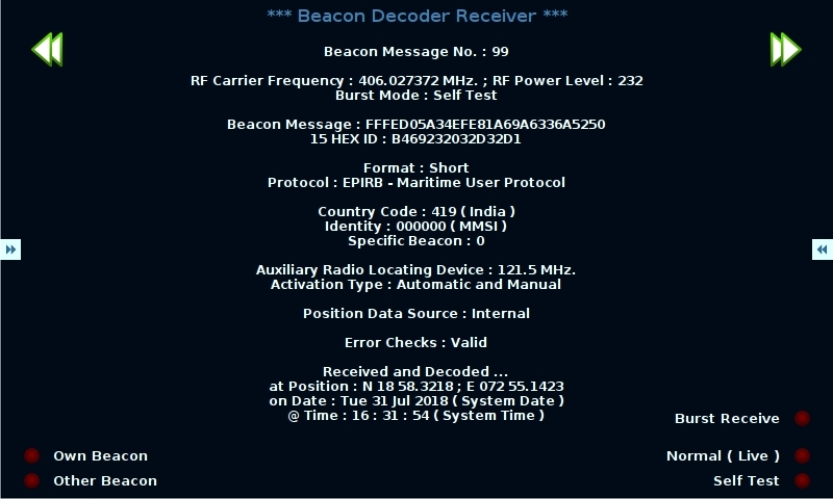

Decoded Data

Beacon Message No. , RF Carrier Frequency , RF Power Level , Burst Mode , Beacon Message , 15 HEX ID , Message Format , Protocol , Country Code , Identity , Specific Beacon , Aux. Radio Locating Device , Activation Type , Position Data Source , Location Stamp , Date Stamp and Source , Time Stamp and Source



On Screen Indications

Beacon Burst Receive , Source : Own Beacon / Other Beacon , Mode : Normal ( Live ) / Self Test

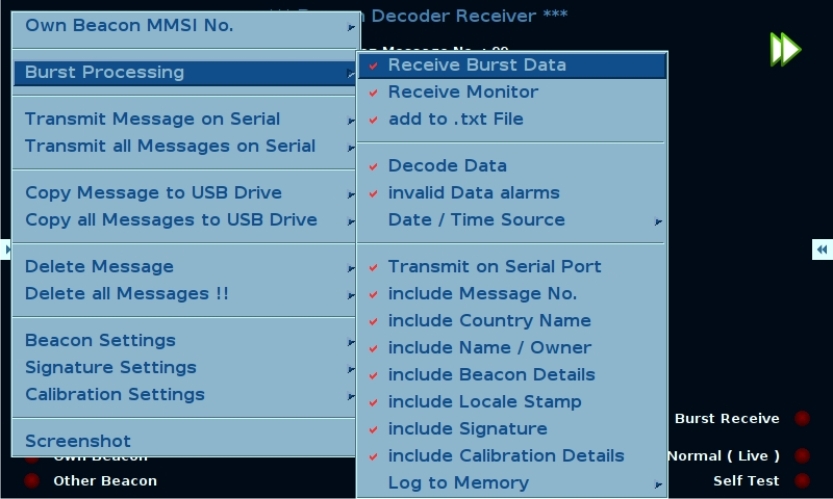

BM 510 - Beacon Decoder Receiver

Own Beacon MMSI No. , include Message No. , include Country Name , include Name / Owner , include Beacon Details , include Locale Stamp , include Signature , include Calibration Details , Log to Memory



Message Settings

Transmit Message on Serial , Transmit all Messages on Serial , Copy Message to USB Drive , Copy all Messages to USB Drive , Delete Message , Delete all Messages !!

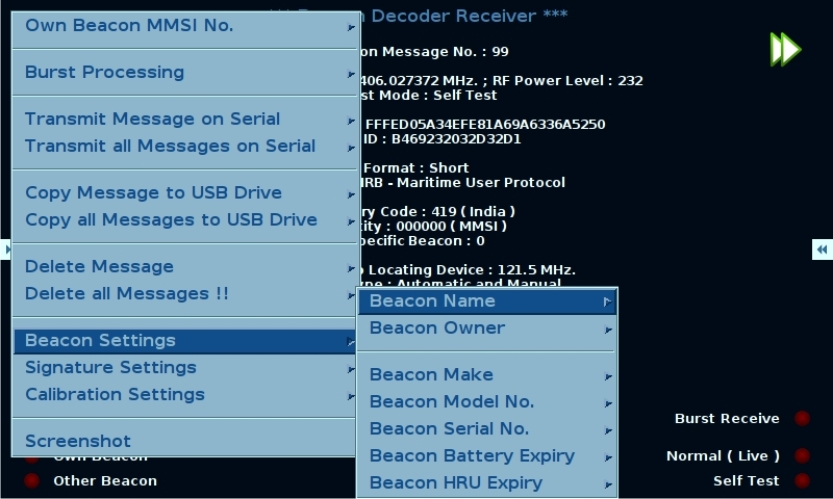

BM 510 - Beacon Decoder Receiver

Beacon Settings

Beacon Name , Beacon Owner , Beacon Make , Beacon Model No. , Beacon Serial No. , Beacon Battery Expiry , Beacon HRU Expiry



Signature Settings

Serviced & Tested by , For



Calibration Settings

Decoder Serial No. , Calibration Date , Calibration Due
